Features
BOTTOM FREEZER WITH FLUSH INSET INSTALLATION
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry.

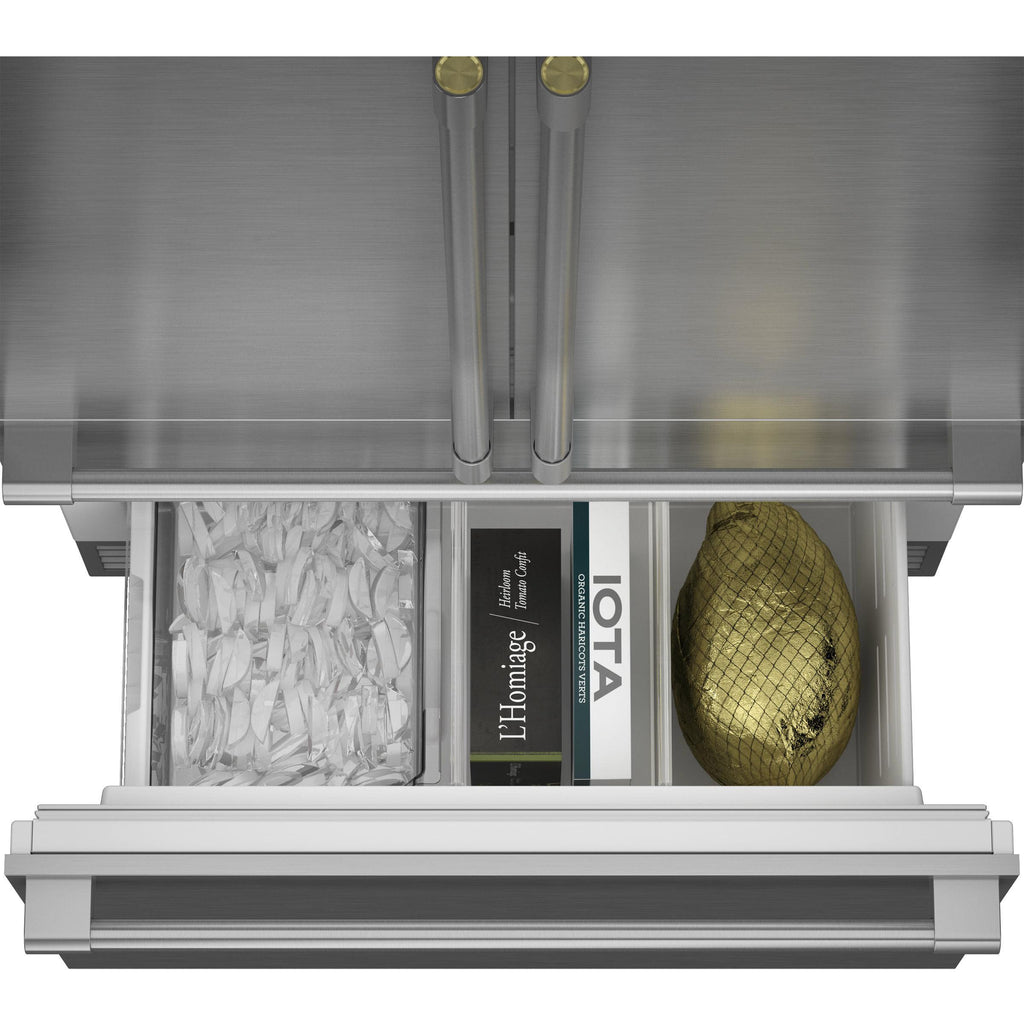

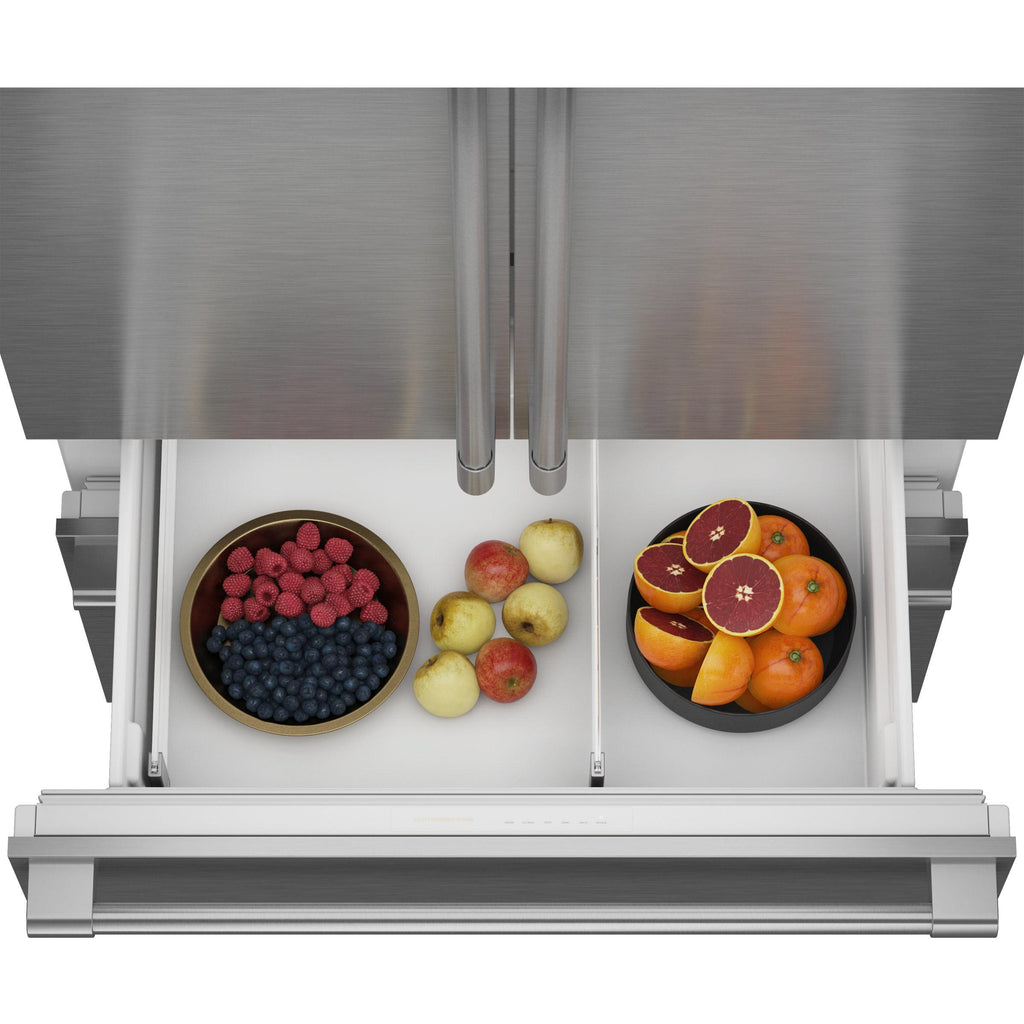

6-TEMPERATURE SETTING CONVERTIBLE DRAWER
The convertible drawer with 6 temperature settings allows you to choose whether the lower drawer is a freezer or a fresh food/wine or beverage refrigerator, with independent temperature controls for storage choice and flexibility.
WIFI CONNECTED REFRIGERATOR
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app.

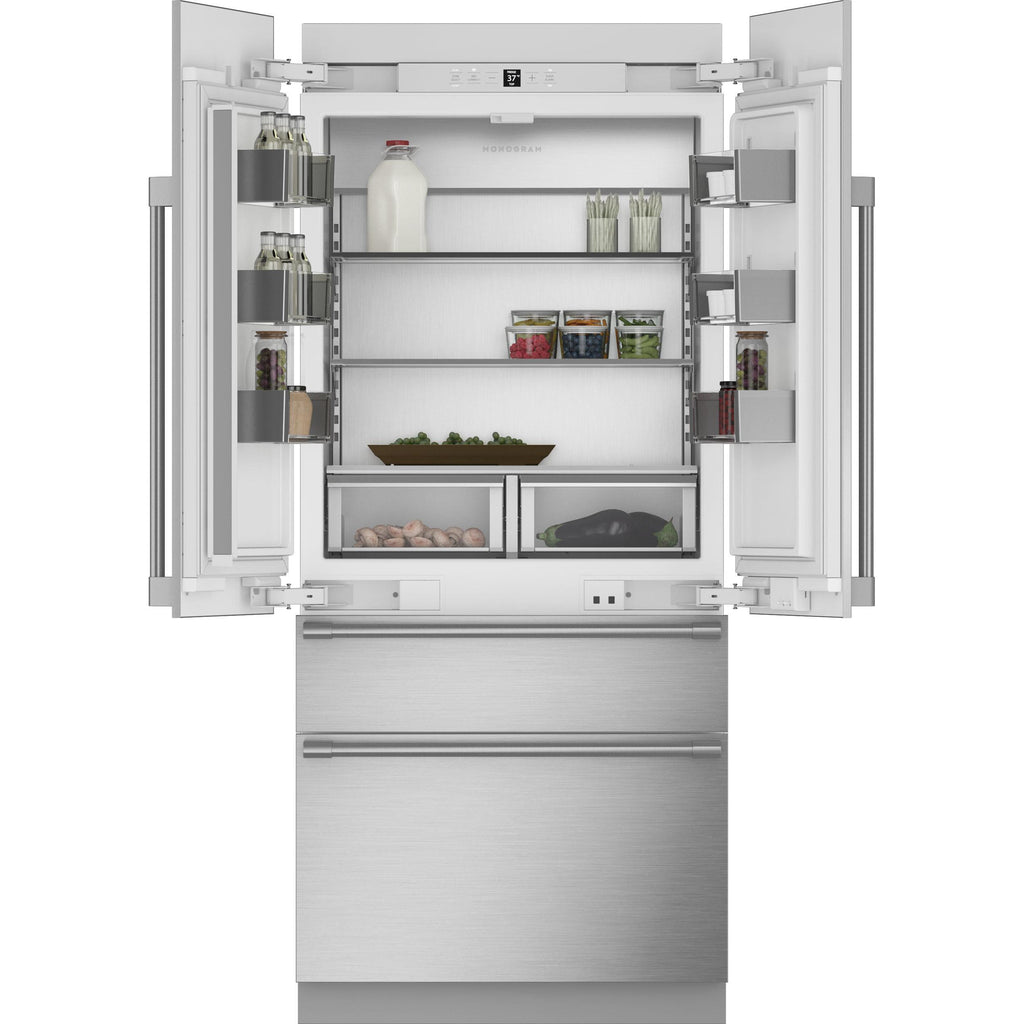

2 HUMIDITY-CONTROLLED VEGETABLE DRAWERS
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness.

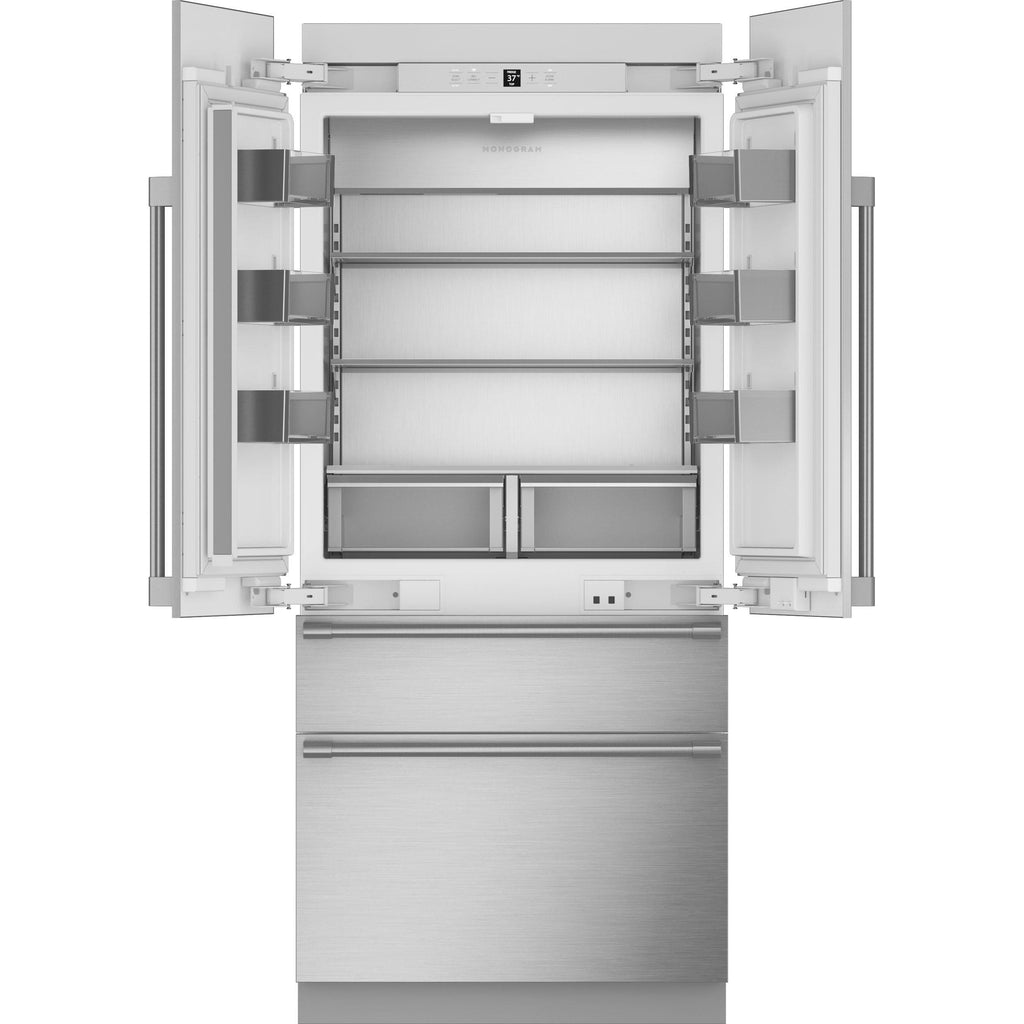

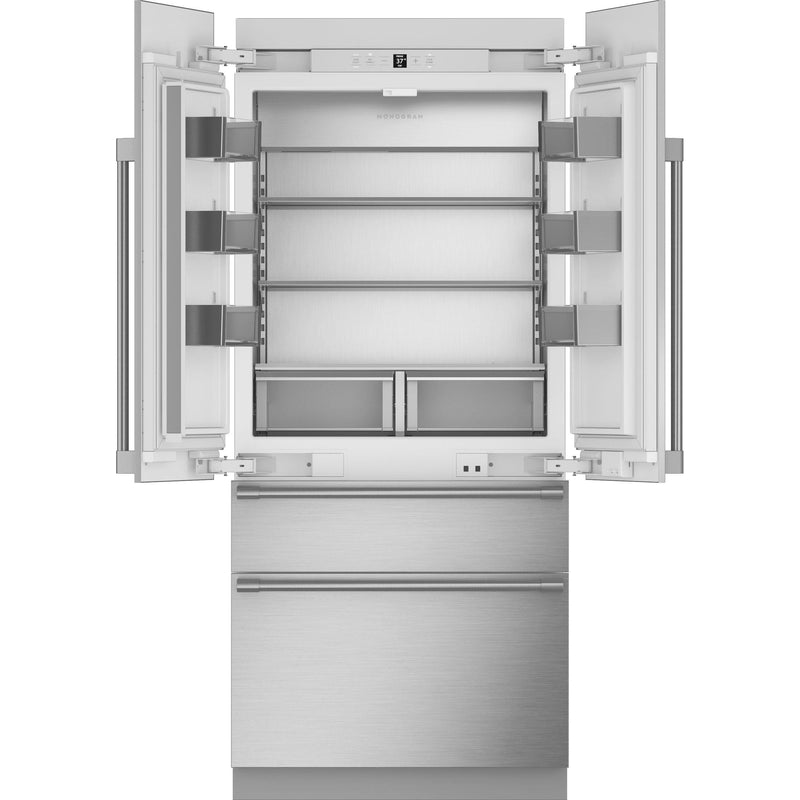

REFRIGERATOR SHELVES
Edge-to-edge glass shelves provide convenient storage and a clean appearance.
FACTORY INSTALLED ICE MAKER
Create all the ice you want, anytime you like, with this refrigerator with ice maker
Specifications
General
Refrigerator Type
French 4-Door
Installation Type
Built-In
Door Hinge
Left and Right
Color
Panel Ready
Manufacturer Color
Custom Panels
Capacity
Total
20.1 cu. ft.
Refrigerator
16.6 cu. ft.
Freezer
3.5 cu. ft.
Refrigerator Features
Technologies
Wi-Fi Connect
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Integrated Upfront Capacitance Touch Controls
• Fresh Food Cabinet Drawers: 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides
• Fresh Food Cabinet Shelves: 2 Full-Width Spill-Resistant
• Fresh Food Cabinet Shelf Features: Lighted Glass Shelves
• Fresh Food Door Bins: 6 with glass and metal design
• Fresh Food Door Features: 6 Adjustable Full-Width
• Bottom Drawer: One Adjustable Divider Plastic Interior, Freezer w/IM
• Middle Drawer: 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce, Convertible; Metal Interior with Mat
• Interior Lighting: LED
• Leveling System: 4 Point (2 adjustable back rollers, 2 adjustable front legs)
• Dual Evaporator Independent Temperature Controls
• Fresh Food Cabinet Drawers: 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides
• Fresh Food Cabinet Shelves: 2 Full-Width Spill-Resistant
• Fresh Food Cabinet Shelf Features: Lighted Glass Shelves
• Fresh Food Door Bins: 6 with glass and metal design
• Fresh Food Door Features: 6 Adjustable Full-Width
• Bottom Drawer: One Adjustable Divider Plastic Interior, Freezer w/IM
• Middle Drawer: 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce, Convertible; Metal Interior with Mat
• Interior Lighting: LED
• Leveling System: 4 Point (2 adjustable back rollers, 2 adjustable front legs)
• Dual Evaporator Independent Temperature Controls
Freezer Features
Additional Freezer Information
Freezer Drawer with Full Extension Slides Soft-Close
Ice and Water
Ice System
Interior
Filtration
Yes
Filtration Indicator
Yes
Dispenser Features
• Factory-Installed Ice Maker

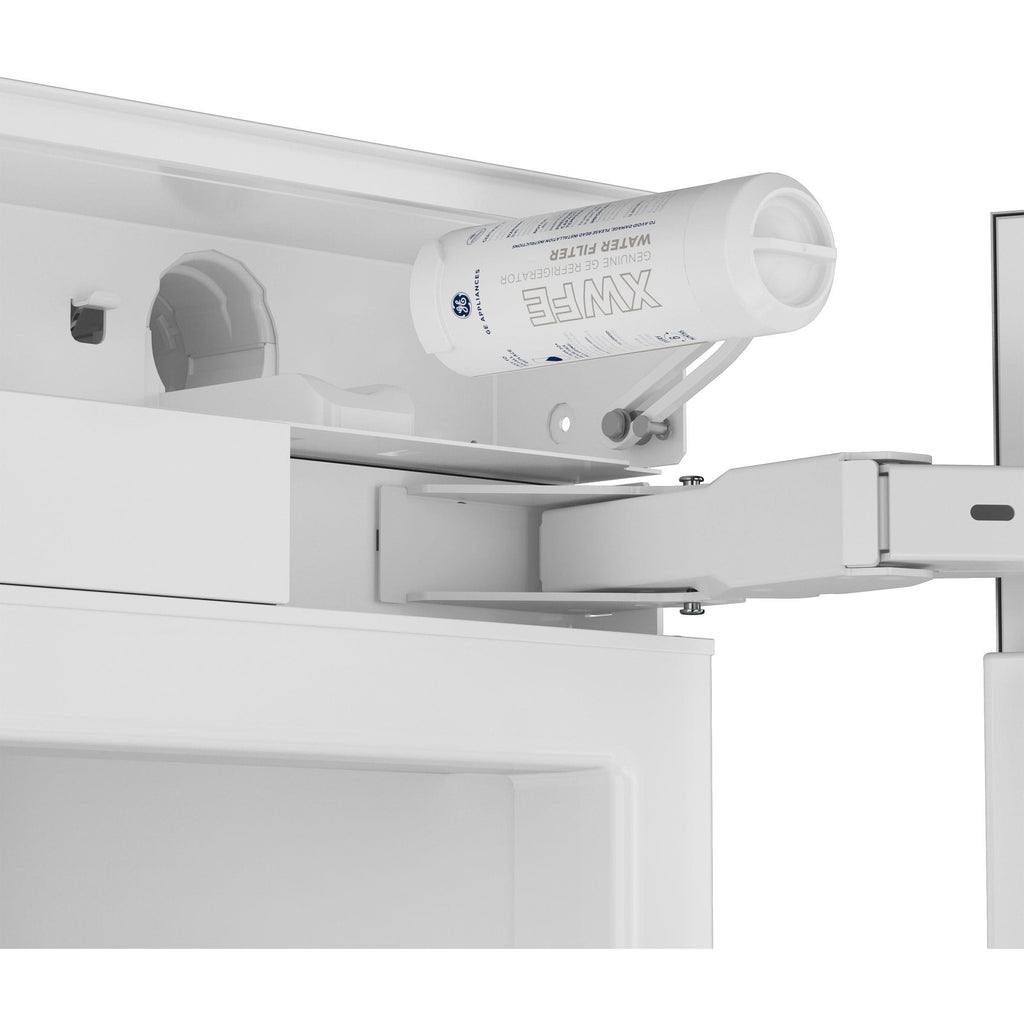

• GE Water Filtration (XWFE Filter)
• Display water filter status @ 90% usage
• GE Water Filtration (XWFE Filter)
• Display water filter status @ 90% usage
Electrical Information
Information
115V; 60Hz; 20A
Certifications and Approvals
Sabbath Mode
Yes
Accessories
Optional
• Handle Stud Kit: ZKPN
• Side by Side Install Toe-Kick Kit: 54" ZKK54P 60" ZKK60P 66" ZKK66R 72" ZKK72R
• SxS Install Heater/Unification Kit: ZKUN
• Trim Kit: 36" Trim Kit for 24" deep cabinets ZKR36V 72" Trim Kit for 24" deep cabinets ZKR72V
• Requires Statement Handle Kit (ZKSB4H4PVSS) or Minimalist Handle Kit (ZKSB4H4CVSS)
• Side by Side Install Toe-Kick Kit: 54" ZKK54P 60" ZKK60P 66" ZKK66R 72" ZKK72R
• SxS Install Heater/Unification Kit: ZKUN
• Trim Kit: 36" Trim Kit for 24" deep cabinets ZKR36V 72" Trim Kit for 24" deep cabinets ZKR72V
• Requires Statement Handle Kit (ZKSB4H4PVSS) or Minimalist Handle Kit (ZKSB4H4CVSS)

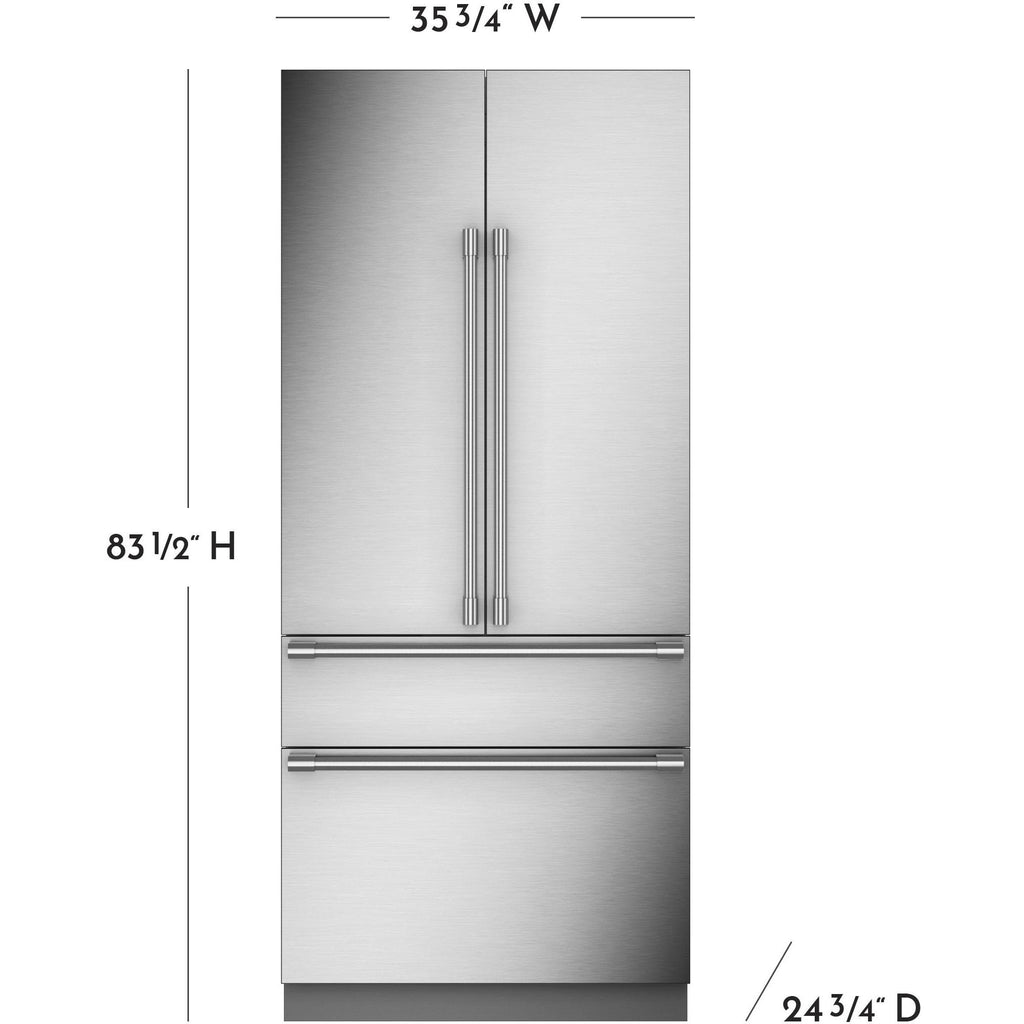

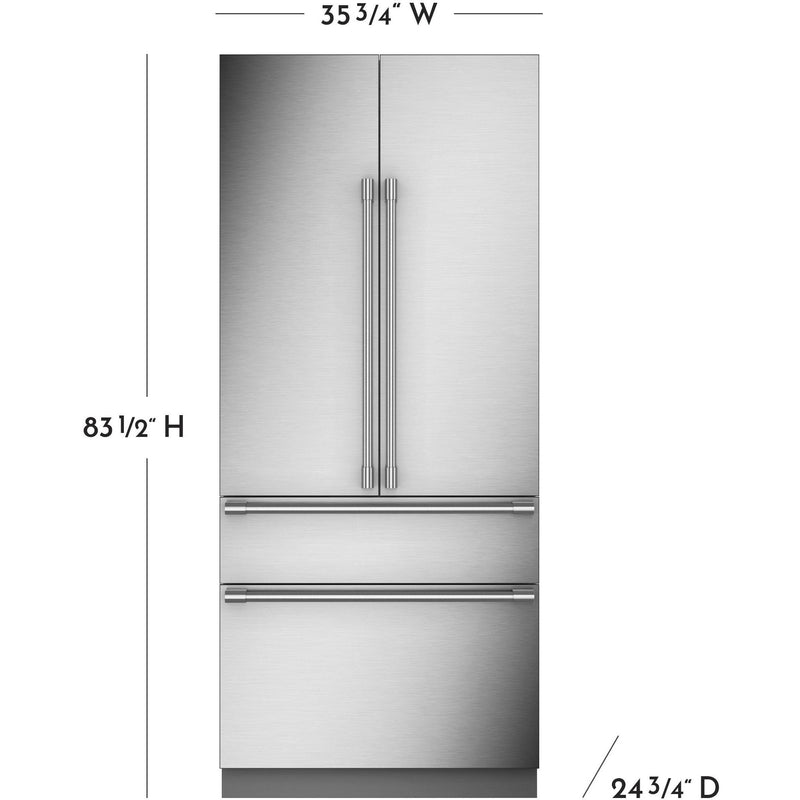

Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.80 cm
Height (With Hinge)
83.5 inch(es) / 212.09 cm
Overall Depth
24.76 inch(es) / 62.9 cm
Depth (With Handles)
24.75 inch(es) / 62.86 cm
Weight
586.01 lb(s) / 265.81 kg
Additional Dimensions
• Cutout Width: 36" (91.4 cm)
• Cutout Height: 84" (213.4 cm)
• Cutout Depth: 25" (63.5 cm)
• Cutout Height: 84" (213.4 cm)
• Cutout Depth: 25" (63.5 cm)
Shipping Dimensions
Width
42.6 inch(es) / 108.20 cm
Height
87.5 inch(es) / 222.25 cm
Depth
30.9 inch(es) / 78.49 cm
Weight
621 lb(s) / 281.68 kg
Warranty
Warranty
• Parts Warranty: Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance
• Labor Warranty: Limited 2-year entire appliance Limited 5-year sealed refrigerating system
• Labor Warranty: Limited 2-year entire appliance Limited 5-year sealed refrigerating system
UPC
UPC#
084691916239
