Features
HYDROSAVE™ CYCLE
Reduces water usage by more than 25%**, ideal for conserving resources and efficiently cleaning lightly soiled dishes.
**Compared to Normal Cycle 4-place setting soil load

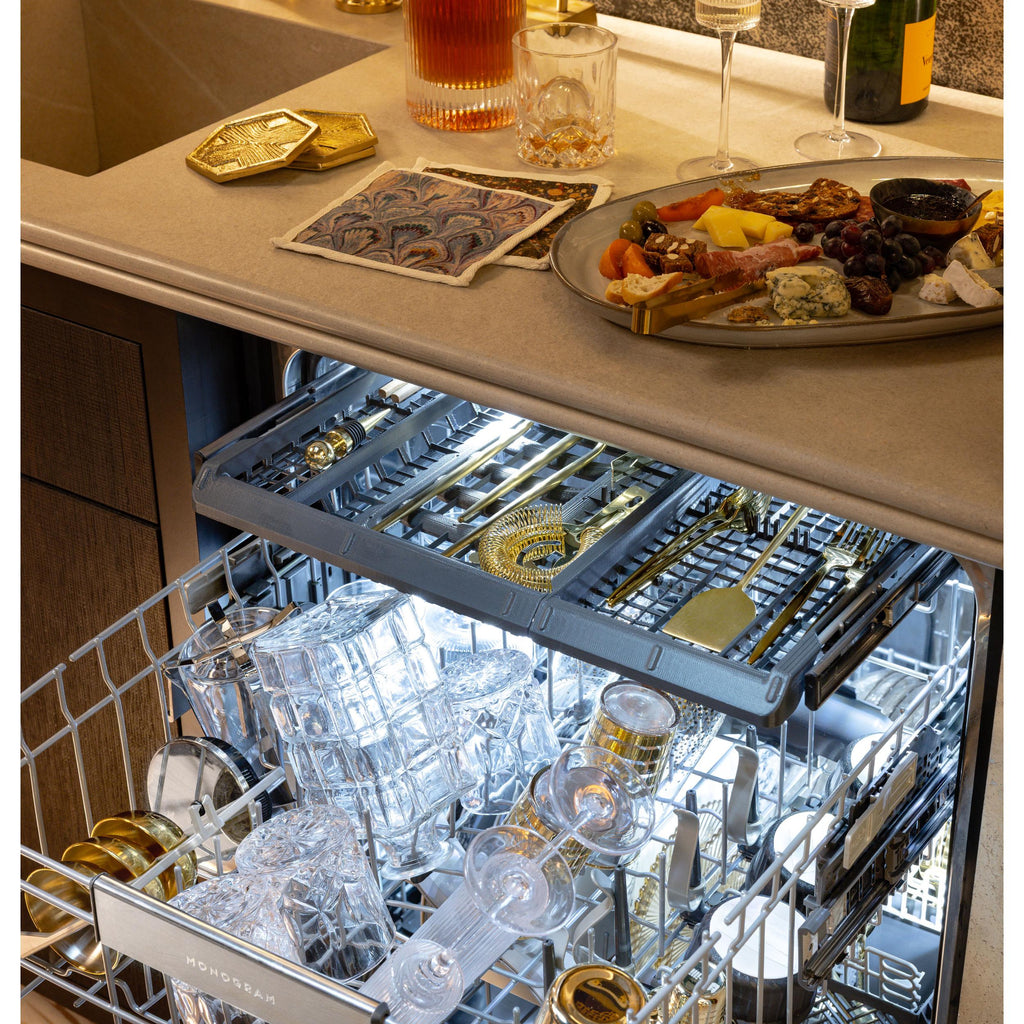

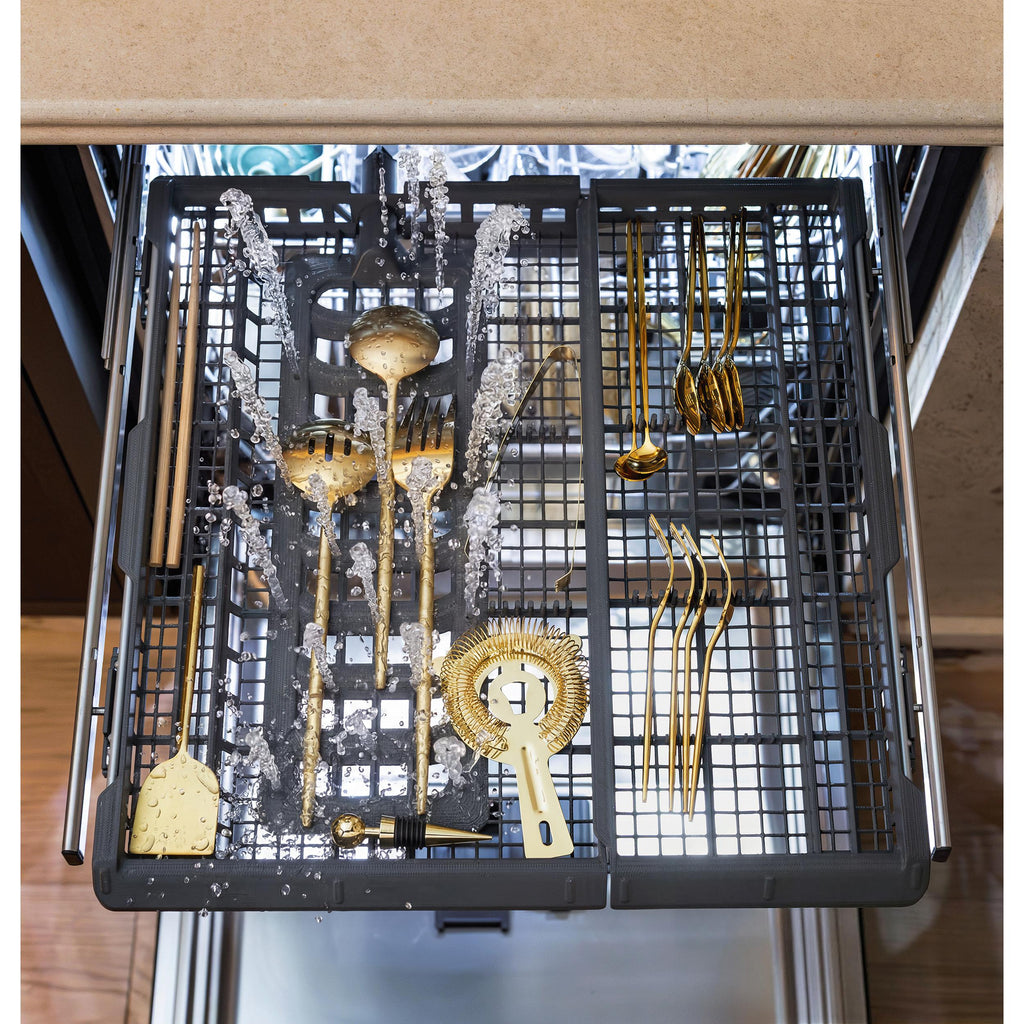

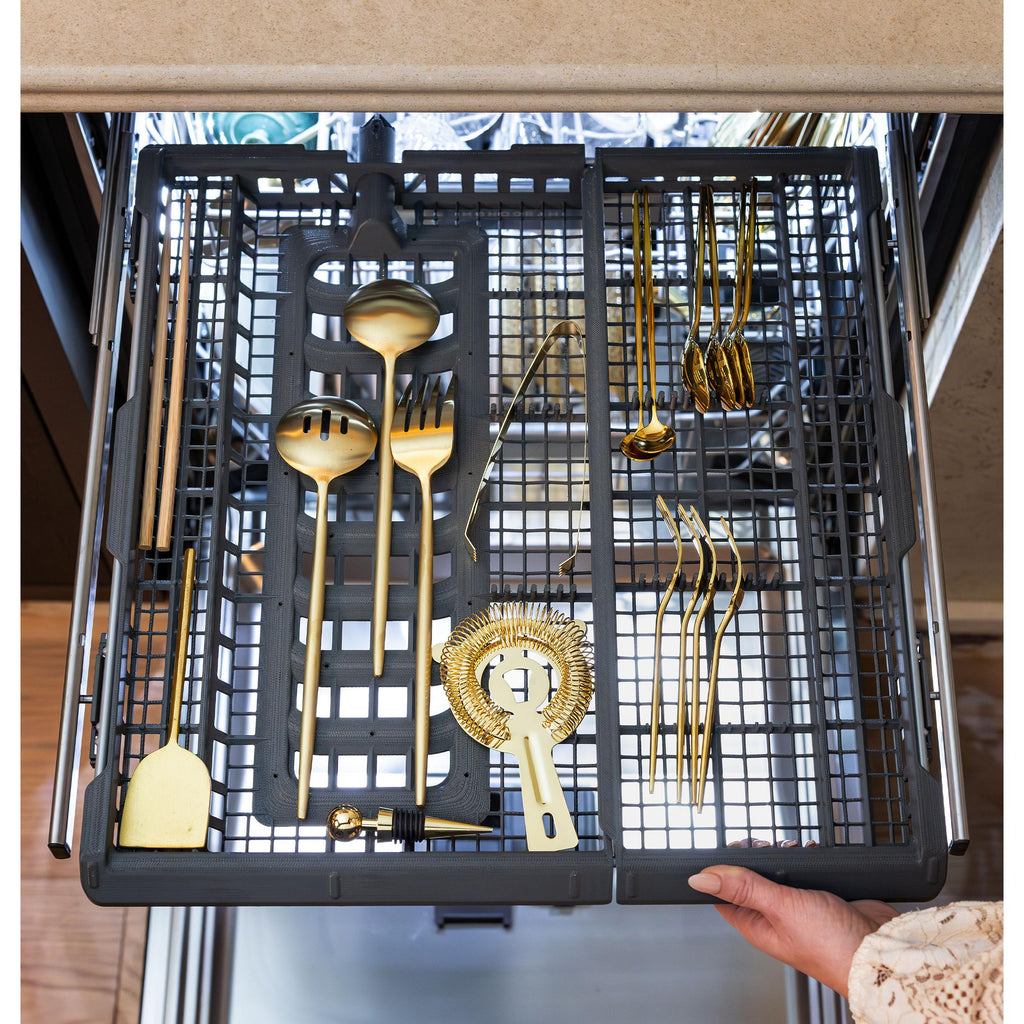

ENTERTAINER'S VERSATILE THIRD RACK WITH WASH MANIFOLD
The smooth-gliding, full-extension third rack offers added flexibility for larger items below, with an integrated wash manifold that ensures utensils are precisely spaced and thoroughly cleaned.

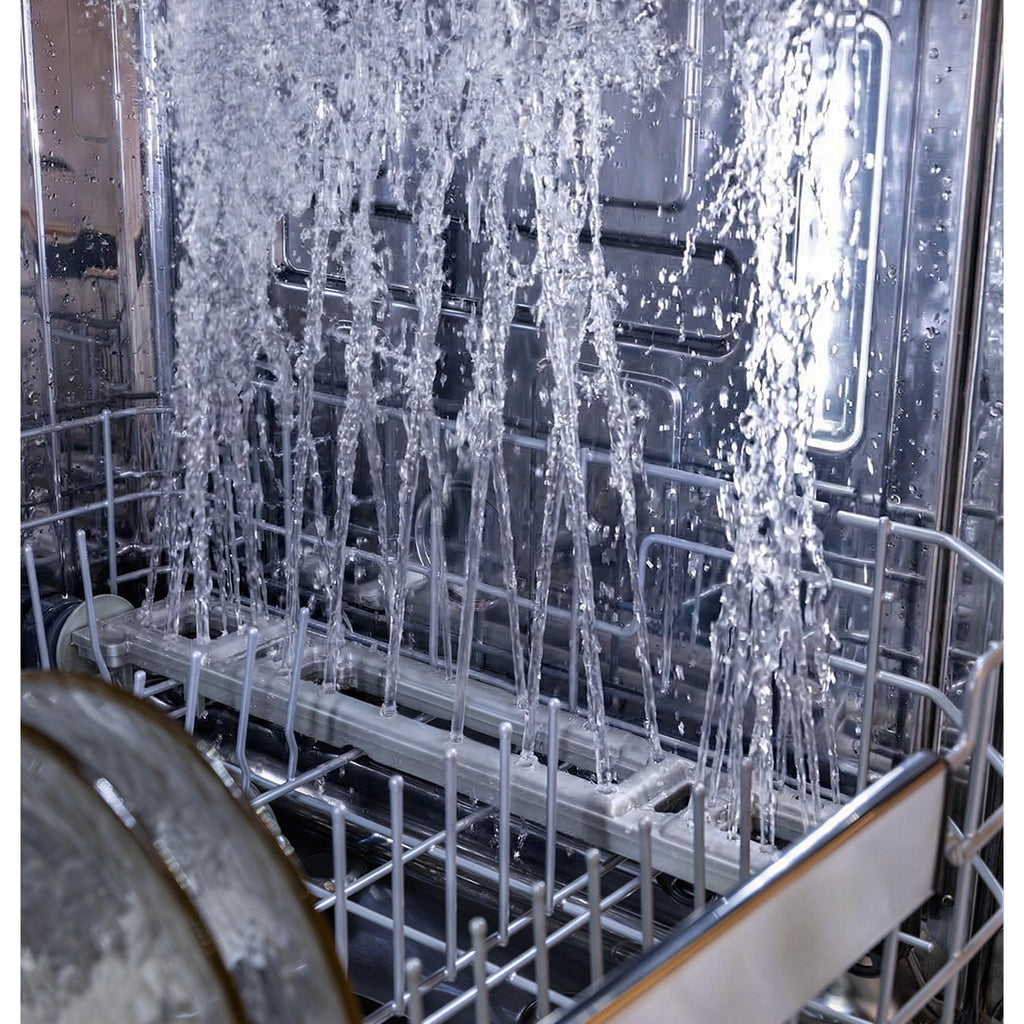

ADVANCED WASH SYSTEM
Designed to achieve the ultimate clean, this advanced wash system with over 90 powerful jets delivers complete washing coverage to
every corner of the dishwasher.
DUAL DRY SYSTEM
A precise drying system, featuring dual fans and heaters, gently and efficiently dries even the most challenging items, including champagne flutes.
TAILORED WASH CYCLES

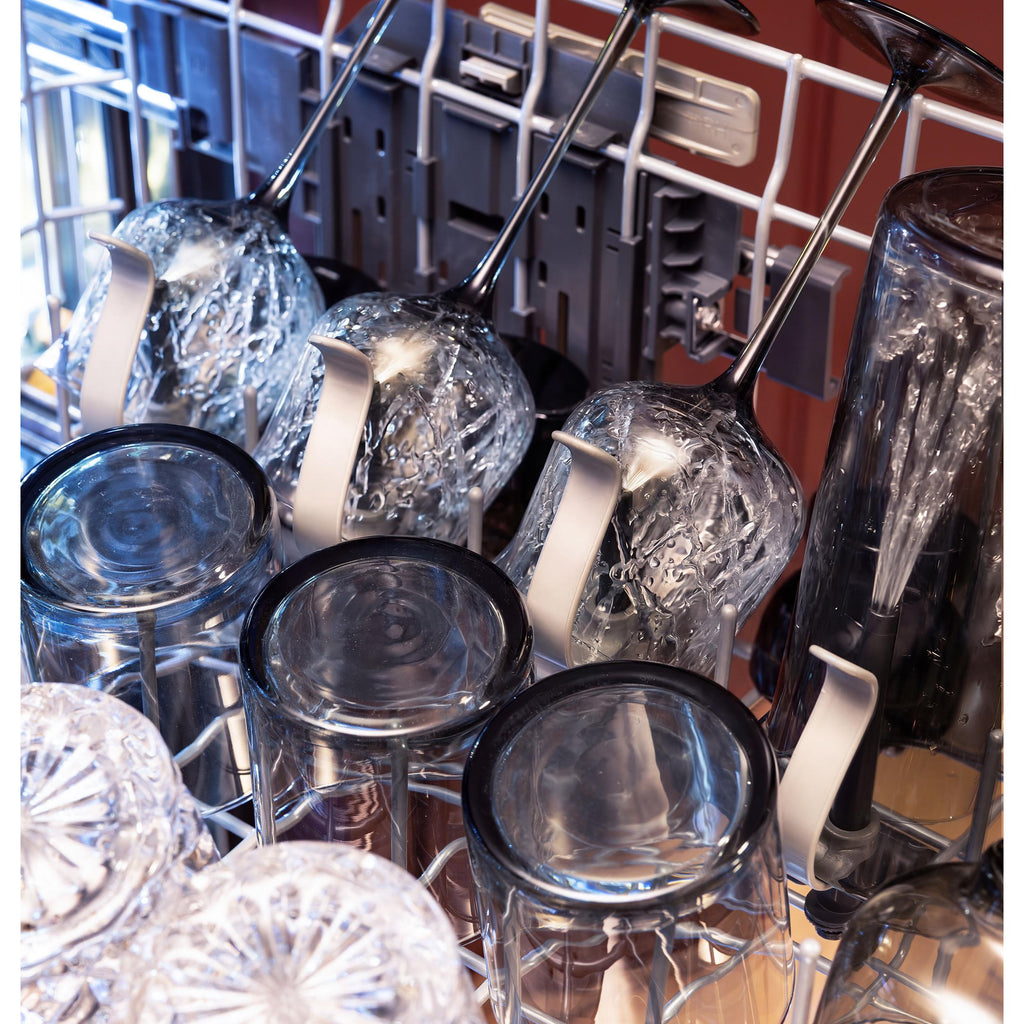

Designed for hosting and everyday use, featuring a dedicated Crystal cycle along with specialty options such as PrepRinse™ and Dishwasher Cleaning for added care and convenience.
WIFI CONNECT
Monitor performance and check cycle status using your mobile device.
BRILLIANT SURROUND LED LIGHTING
Illuminates the entire interior for effortless loading and unloading.

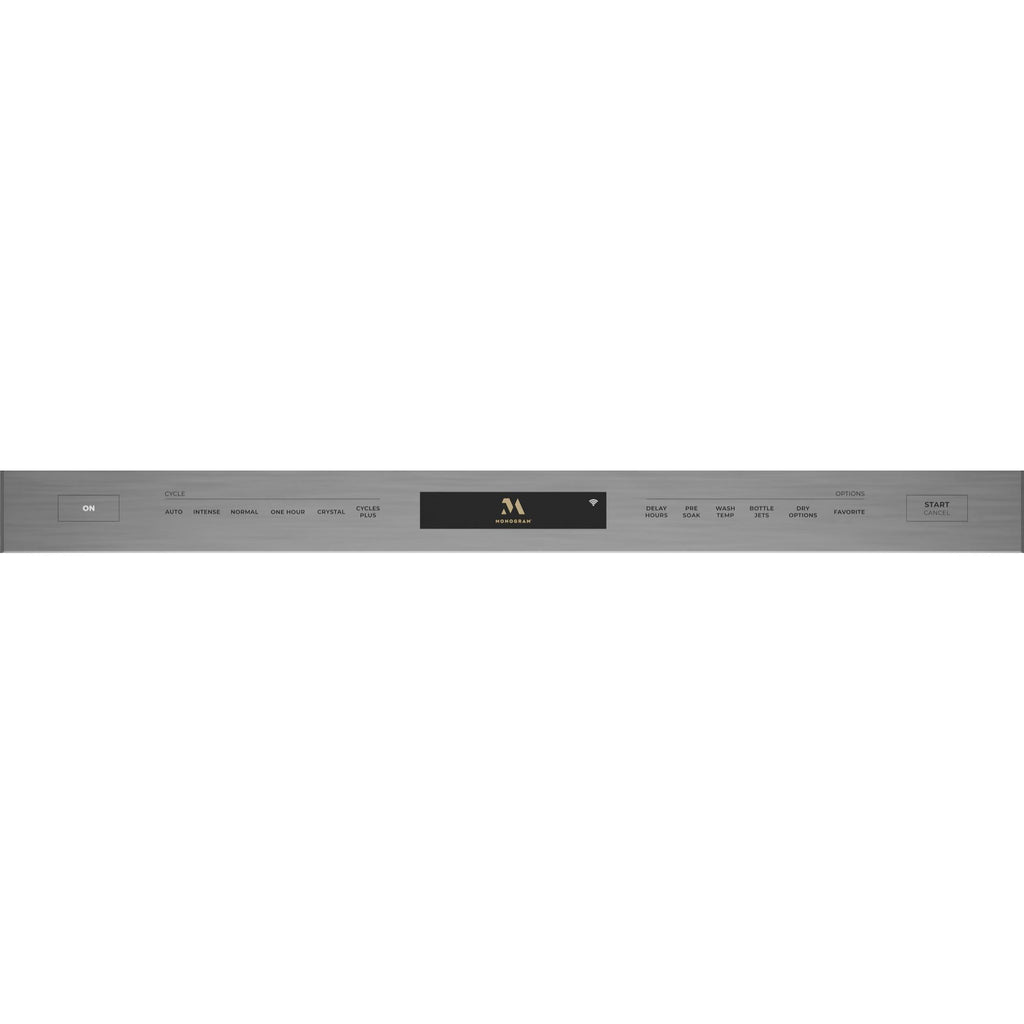

INTUITIVE NAVIGATION
Glass touch controls and a brilliant LCD screen elevate the everyday chore into an effortless ritual.
Specifications
General
Series Name
• Minimalist Collection
• Statement Collection
• Statement Collection
Type
Built-In
Color

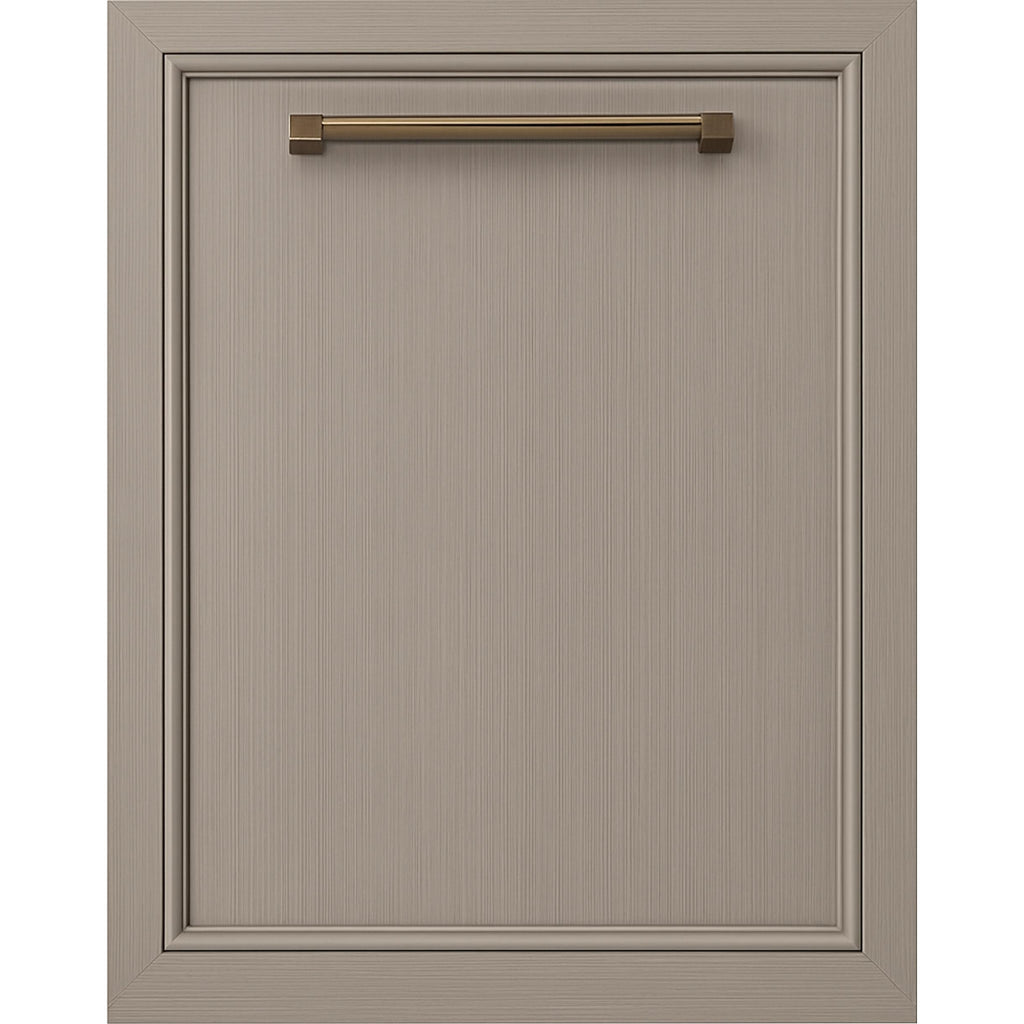

Panel Ready
Manufacturer Color
Custom Panels
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
37 dB
Cycle Information
Number of Cycles
10
Wash Cycles
• Auto
• 1 Hour Wash & Dry
• Intense
• Crystal
• Normal
• Cycles Plus
• Favorites
• PrepRinse
• Dishwasher Cleaning
• Cascade Platinum Plus
• HydroSave
• Quiet
• 1 Hour Wash & Dry
• Intense
• Crystal
• Normal
• Cycles Plus
• Favorites
• PrepRinse
• Dishwasher Cleaning
• Cascade Platinum Plus
• HydroSave
• Quiet
Options
• Delay Start 1-12 Hr.
• Pre Soak
• Wash TempBoost
• Sani (Certified to NSF Standard 184)
• Heated Dry
• Wash Zone Upper Only
• Wash Zone Lower Only
• Start/Reset
• Bottle Wash
• Silverware Wash
• Pre Soak
• Wash TempBoost
• Sani (Certified to NSF Standard 184)
• Heated Dry
• Wash Zone Upper Only
• Wash Zone Lower Only
• Start/Reset
• Bottle Wash
• Silverware Wash
Features
Technologies
• Built-In WiFi Connect
• Connected Capabilities: Amazon Alexa,The Google Assistant,IFTTT,Amazon Dash Replenishment,Sonos,Google Home
• Connected Features: Smart Assist II,Bottle Wash Jets,1/2 Load Wash Zones,Rinse,Cascade Platinum Plus/Shine,Child Lock,Dishwasher Cleaning
• Connected Capabilities: Amazon Alexa,The Google Assistant,IFTTT,Amazon Dash Replenishment,Sonos,Google Home
• Connected Features: Smart Assist II,Bottle Wash Jets,1/2 Load Wash Zones,Rinse,Cascade Platinum Plus/Shine,Child Lock,Dishwasher Cleaning
Delay Start Information
1-12 Hr.
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Smart Assist II
• Bottle Wash Jets
• 1/2 Load Wash Zones
• Rinse
• Cascade Platinum Plus/Shine
• Child Lock
• Dishwasher Cleaning
• Intuitive Touch Controls with Brilliant LCD Screen
• Hi-Resolution Color LCD Control Display
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Dry System (2 Fans, 2 Heaters)
• Power Dry
• Max Dry
• Floor Protect with Alert
• LED Interior Lighting
• Front Adjustable Leveling Legs
• Clean Sensor
• Variable Speed Dual Pumps and Motors
• 90+ Water Jets with 6 Pressurized Wash Zones
• 3 Pressurized Wash Arms
• Bottle Wash Jets
• Dedicated Flatware and Utensil Wash Jets
• Third Rack Wash Manifold
• Automatic Temperature Control with Hidden Heater
• Hard Food Disposer with Removable Filter
• 100% Filtration with Hard Food Disposer and Removable Filter

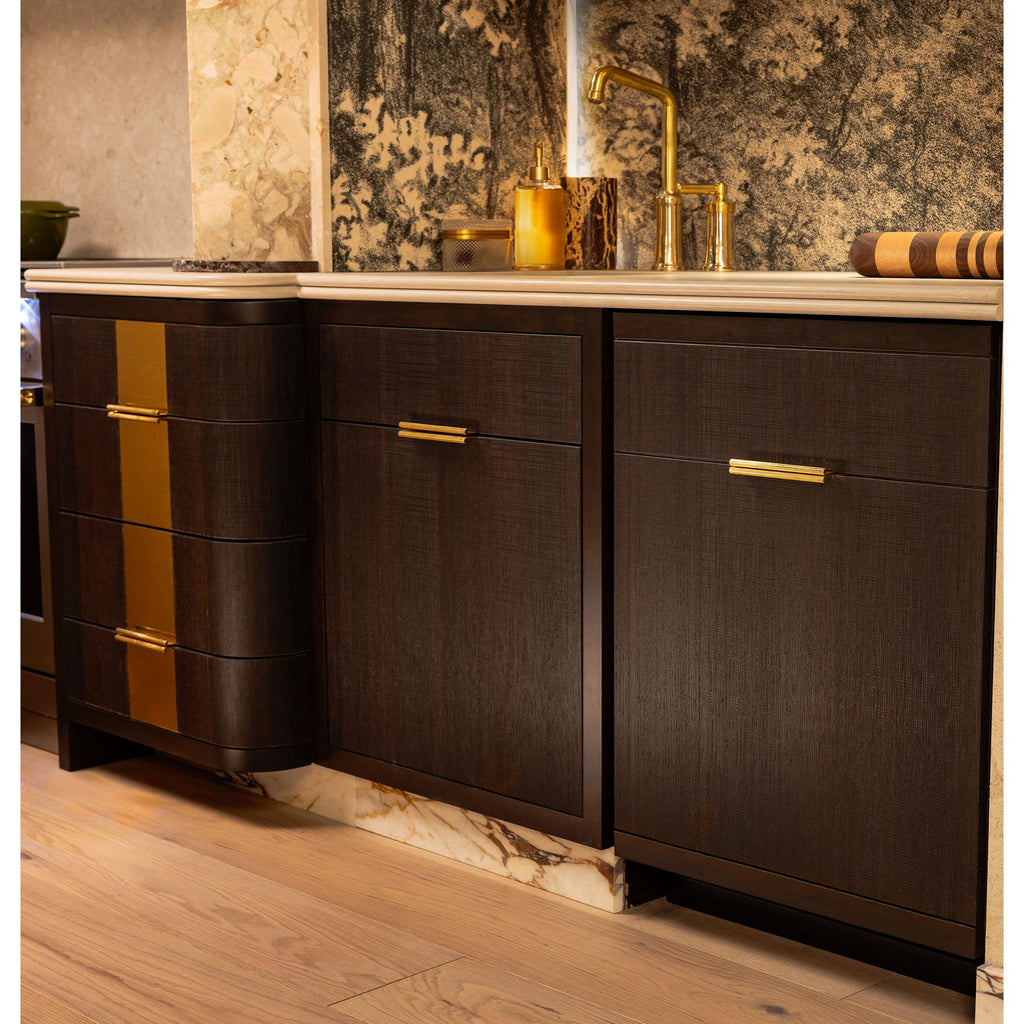

• True Flush Installation
• Tall Tub Design
• Variable Speed Motor
• Mastic Door Insulation
• Bitumen + Full-Wrap Blanket Outer Wrap
• Showroom Power Mode
• Adjustable Upper Rack
• 3 Piece Silverware Basket
• Premium Height Adjustable Upper Rack
• Stem Safe Shelves
• Long Door with Top Controls
• Handle Sold Separately
• Bottle Wash Jets
• 1/2 Load Wash Zones
• Rinse
• Cascade Platinum Plus/Shine
• Child Lock
• Dishwasher Cleaning
• Intuitive Touch Controls with Brilliant LCD Screen
• Hi-Resolution Color LCD Control Display
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Dual Dry System (2 Fans, 2 Heaters)
• Power Dry
• Max Dry
• Floor Protect with Alert
• LED Interior Lighting
• Front Adjustable Leveling Legs
• Clean Sensor
• Variable Speed Dual Pumps and Motors
• 90+ Water Jets with 6 Pressurized Wash Zones
• 3 Pressurized Wash Arms
• Bottle Wash Jets
• Dedicated Flatware and Utensil Wash Jets
• Third Rack Wash Manifold
• Automatic Temperature Control with Hidden Heater
• Hard Food Disposer with Removable Filter
• 100% Filtration with Hard Food Disposer and Removable Filter
• True Flush Installation
• Tall Tub Design
• Variable Speed Motor
• Mastic Door Insulation
• Bitumen + Full-Wrap Blanket Outer Wrap
• Showroom Power Mode
• Adjustable Upper Rack
• 3 Piece Silverware Basket
• Premium Height Adjustable Upper Rack
• Stem Safe Shelves
• Long Door with Top Controls
• Handle Sold Separately
Electrical Information
Information
• 120 V
• 60 Hz
• 10.2 A
• 1296 Watts
• 1200 Watt Calrod Heater
• Factory Installed Power Connection with Offset Flat Plug
• Energy Consumption: 240 kWh/year
• 60 Hz
• 10.2 A
• 1296 Watts
• 1200 Watt Calrod Heater
• Factory Installed Power Connection with Offset Flat Plug
• Energy Consumption: 240 kWh/year
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
Sabbath Mode
Accessories
Included
3 Piece Silverware Basket
Optional
• Optional Hardwire Kit WD21X23559
• Minimalist Handle (ZXADH1MNYSS)
• Statement Handle (ZXADH1STYSS)
• Minimalist Handle (ZXADH1MNYSS)
• Statement Handle (ZXADH1STYSS)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.38 inch(es) / 84.79 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
125.99 lb(s) / 57.15 kg
Additional Dimensions
• Overall Height: 34 in
• Maximum Height: 34.63 in
• Depth with Door Open: 25.5 in
• Cabinet Width: 24 in
• Cabinet Depth: 24 in
• Cutout Width: 24 in
• Cutout Height: 33.5 in
• Cutout Depth: 24 in
• Maximum Height: 34.63 in
• Depth with Door Open: 25.5 in
• Cabinet Width: 24 in
• Cabinet Depth: 24 in
• Cutout Width: 24 in
• Cutout Height: 33.5 in
• Cutout Depth: 24 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
139 lb(s) / 63.05 kg
Warranty
Warranty
• Limited 2-Year Entire Appliance Parts and Labor
• Limited 5-Year Rack and Electronic Control
• Limited Lifetime Stainless Steel Tub and Inner Door
• Limited 5-Year Rack and Electronic Control
• Limited Lifetime Stainless Steel Tub and Inner Door
UPC
UPC#
084691968382
