Features
STAINLESS STEEL INTERIOR
Features a sharp appearance that stands up to tough stains.
ENERGY STAR QUALIFIED
Meets the ENERGY STAR energy efficiency requirements
NSF® Certified Sanitize rinse
Works to eliminate 99% of food soil bacteria.

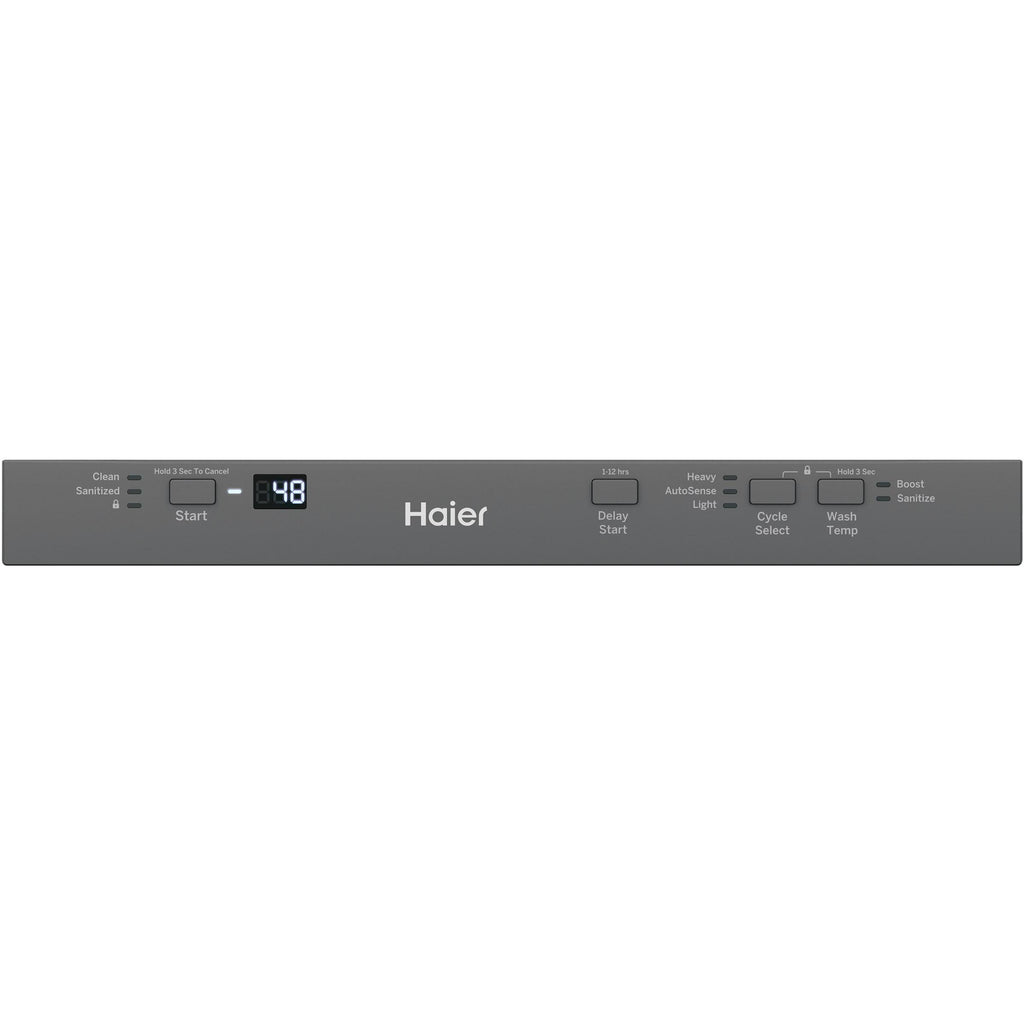

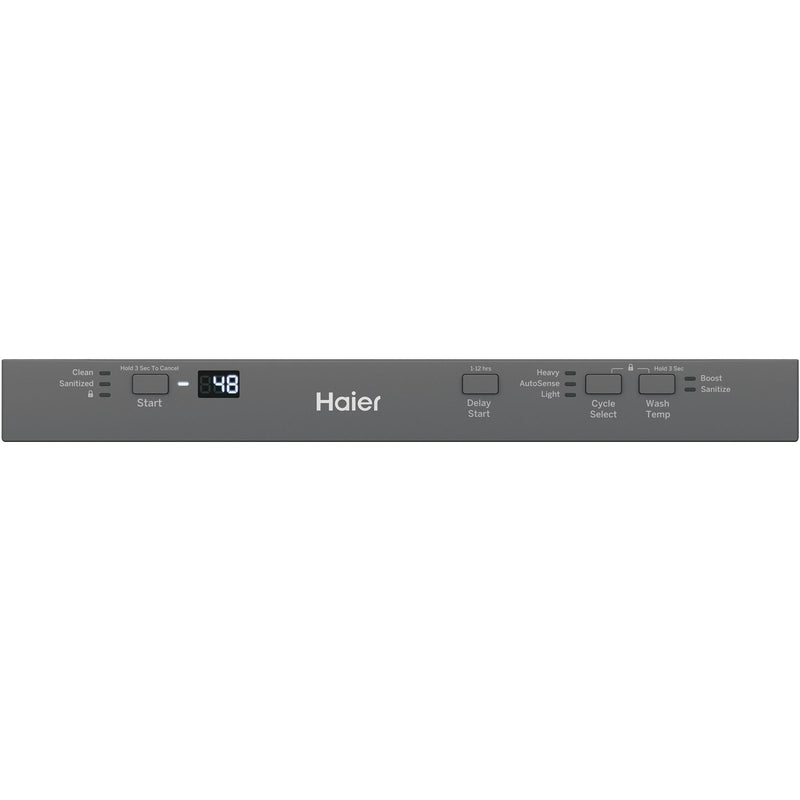

FULLY INTEGRATED LIGHT-TOUCH ELECTRONIC CONTROLS
Hidden controls maintain a smooth appearance and control pad requires the slightest touch
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
8
Tub Material
Stainless Steel
Silence Rating
47 dB
Cycle Information
Number of Cycles
3
Wash Cycles
• Auto sense
• Heavy wash
• Light wash
• Heavy wash
• Light wash
Options
• Start/Reset
• Child lock
• Delay start 1-12 Hr.
• TempBoost
• Sani (NSF Certified)
• Child lock
• Delay start 1-12 Hr.
• TempBoost
• Sani (NSF Certified)
Features
Technologies
• Piranha™ hard food disposer
• Automatic HotStart
• Automatic HotStart
Delay Start Information
1-12-Hour
Delay Start
Yes
3rd Rack System
No
Control Lock
Yes
Cutlery Tray
No
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Single speed motor
• Rinse aid with indicator and adjustment dispenser
• Automatic temperature control
• Flood control system
• Dual pump
• Condensate dry
• 3 digit countdown display with 1 "Clean" light / 1 "Sanitized" light cycle progress indicators
• Audible end-of-cycle signal
• Last cycle memory
• Start/Reset pad
• 3-Stage manual clean filtration
• 1 piece mid silverware basket with 1 cell cover
• 1 plastic utility shelf - upper
• Ball-tipped tines
• Stem safe
• Rinse aid with indicator and adjustment dispenser
• Automatic temperature control
• Flood control system
• Dual pump
• Condensate dry
• 3 digit countdown display with 1 "Clean" light / 1 "Sanitized" light cycle progress indicators
• Audible end-of-cycle signal
• Last cycle memory
• Start/Reset pad
• 3-Stage manual clean filtration
• 1 piece mid silverware basket with 1 cell cover
• 1 plastic utility shelf - upper
• Ball-tipped tines
• Stem safe
Electrical Information
Information
• 120V
• 60Hz
• 8.9A
• Calrod Heater: 1100W
• 60Hz
• 8.9A
• Calrod Heater: 1100W
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
ADA Compliant
Yes
Accessories
Optional
ConnectPlus: PVX10W00Y0
Dimensions
Class Width
18"
Width
18 inch(es) / 45.72 cm
Height (Min.)
32.5 inch(es) / 82.55 cm
Depth (Including Handle)
22.5 inch(es) / 57.15 cm
Weight
72 lb(s) / 32.66 kg
Additional Dimensions
• Cabinet width: 18"
• Height with legs retracted: 32-3/8 - 34-5/8
• Height with legs retracted: 32-3/8 - 34-5/8
Shipping Dimensions
Width
20.5 inch(es) / 52.07 cm
Height
36 inch(es) / 91.44 cm
Depth
26.5 inch(es) / 67.31 cm
Weight
85.01 lb(s) / 38.56 kg
Warranty
Warranty
Limited 1-year warranty on entire appliance for parts and labor
UPC
UPC#
084691830146
