Features
STEAM CLEAN
Fill the resevoir with water and set your oven to "Steam Clean". After 30 minutes you're able to wipe clean all grime and residue.
ADA COMPLIANT
Designed to be accessible and easy to open
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left front: 9500BTU
• Left rear: 9500BTU
• Right front: 15000BTU
• Right rear: 5000BTU
• Left rear: 9500BTU
• Right front: 15000BTU
• Right rear: 5000BTU
Burners
Sealed

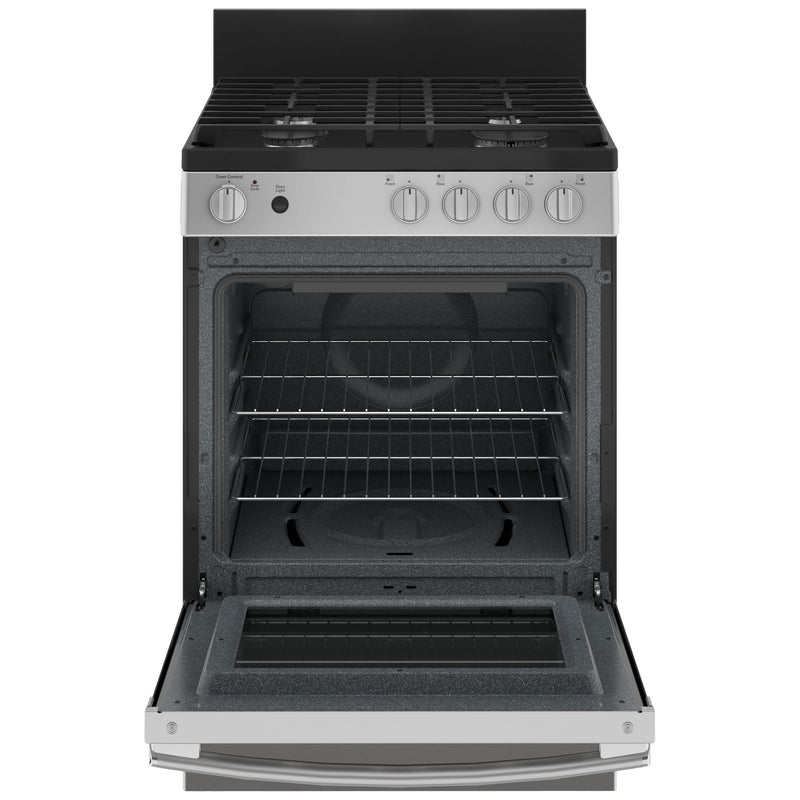

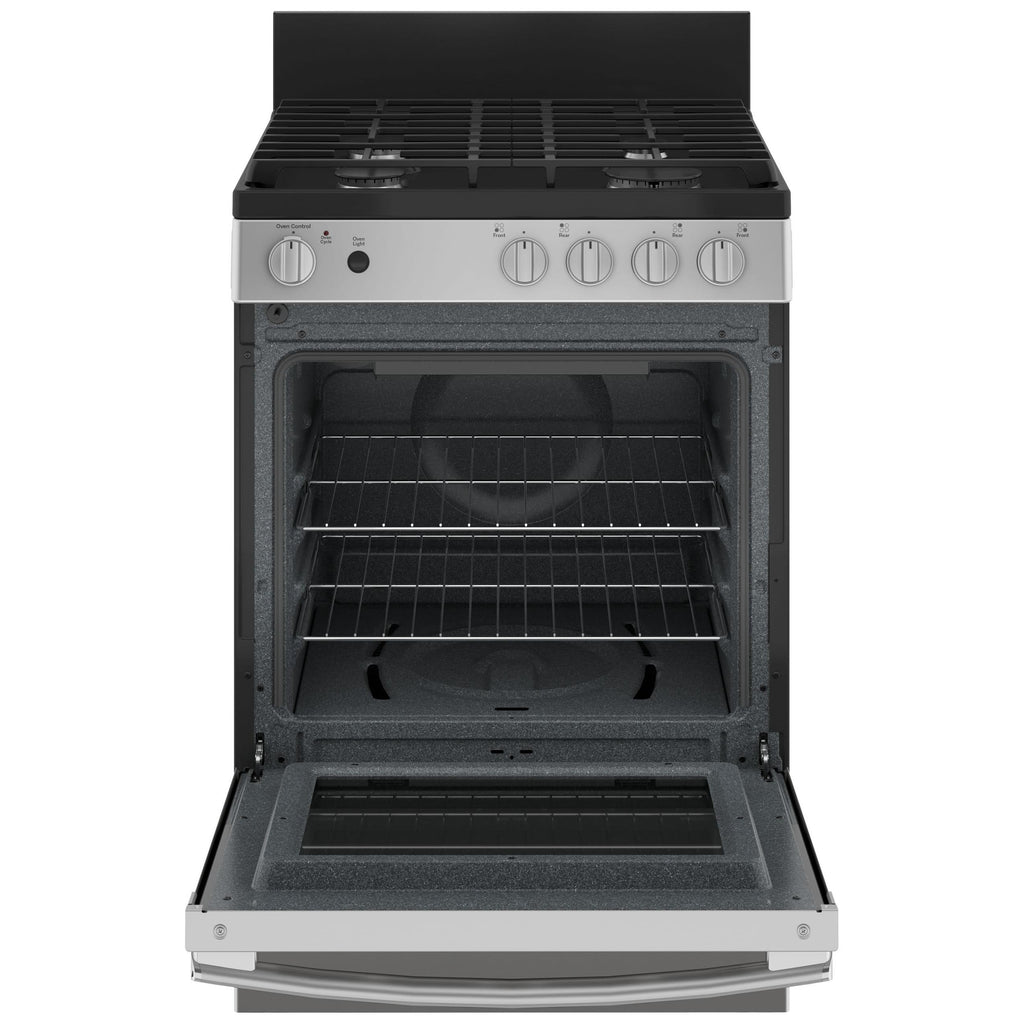

Oven
Capacity (cu. ft.)
2.9 cu. ft.
Number of Ovens
Single
Features
Oven Light
Yes
Additional Information
• Removable porcelain-enameled backguard
• Steam clean oven interior
• Continuous matte black heavy cast burner grate type
• Porcelain-Enamel cooktop
• Electronic ignition system
• In - oven broiling
• 2 nickel oven racks
• 270 valves (degree of turn)
• Oven on indicator light
• Heavy-duty die-cast knobs
• Steam clean oven interior
• Continuous matte black heavy cast burner grate type
• Porcelain-Enamel cooktop
• Electronic ignition system
• In - oven broiling
• 2 nickel oven racks
• 270 valves (degree of turn)
• Oven on indicator light
• Heavy-duty die-cast knobs
Drawer Features
Storage
Yes
Electrical Information
Information
Broil wattage: 3000W
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
Liquid propane conversion kit
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height
41.5 inch(es) / 105.41 cm
Depth (Including Handles)
25.87 inch(es) / 65.72 cm
Weight
106.99 lb(s) / 48.53 kg
Additional Dimensions
• Cutout dimensions (w x h x d) (in.):24 x 36 x 24
• Overall depth with backsplash (in):28-1/8
• Overall depth with backsplash (in):28-1/8
Warranty
Warranty
1 year in home, parts and labor
